For Turbomachinery

Solutions for Turbomachinery Design

Are you interested in design explorations and shape optimization of turbomachinery components? We provide tailor-made solutions on the basis of CAESES® that give you the perfect and complete environment for the design of such applications.

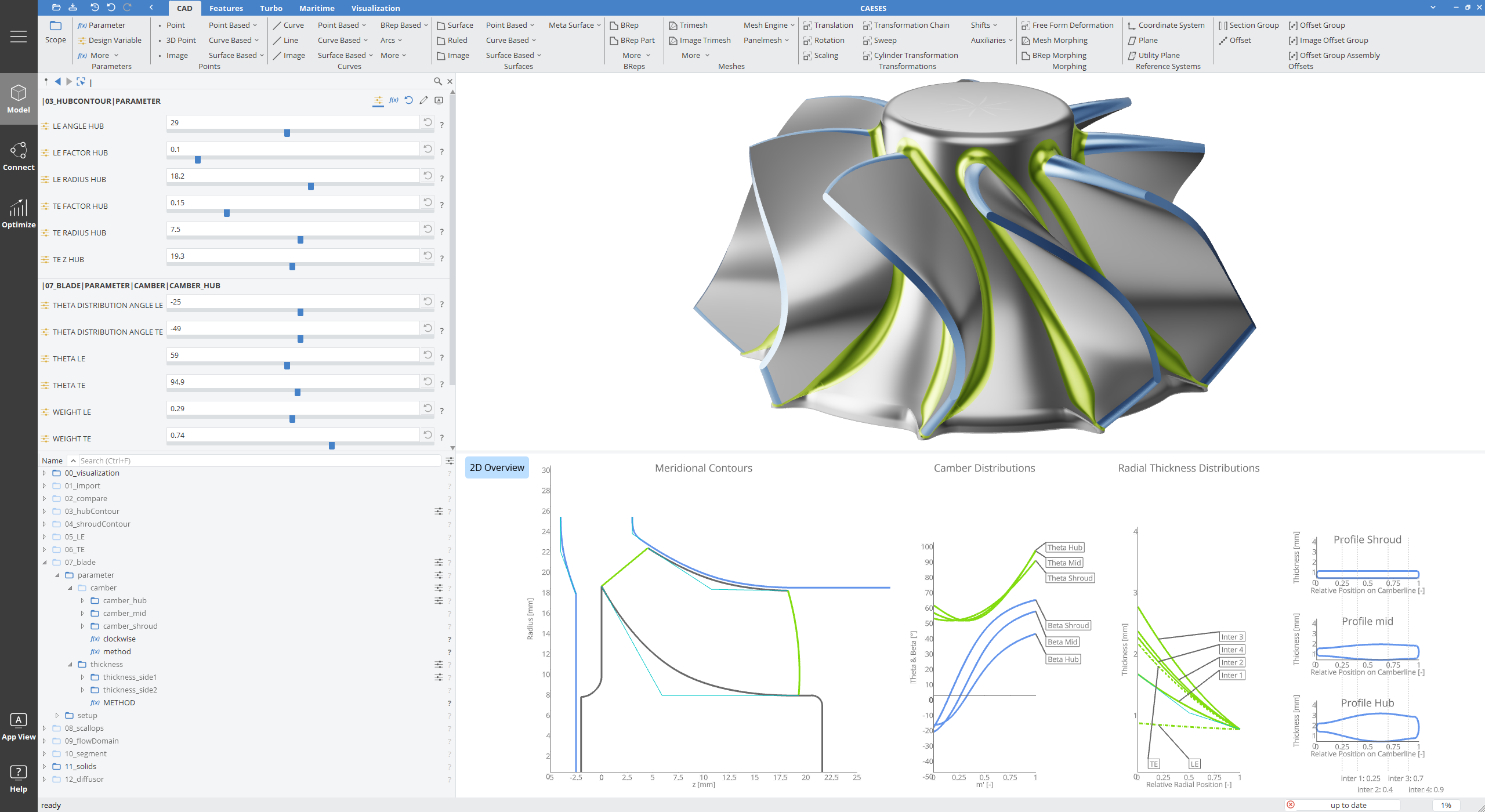

Get your fully-parametric and robust geometry model for any type of impeller and axial blades, for instance, for turbochargers and pumps. These models come with fewer & smarter parameters to saves computational time. Of course, all your company-specific know-how can be incorporated, we are always in close contact with our customers.

We can deliver variable geometry that can be used for both CFD and stress analysis, respectively. Use these CAD models for manual design studies or fully-automated shape optimizations. Any kinds of design constraints can be built into it, too.

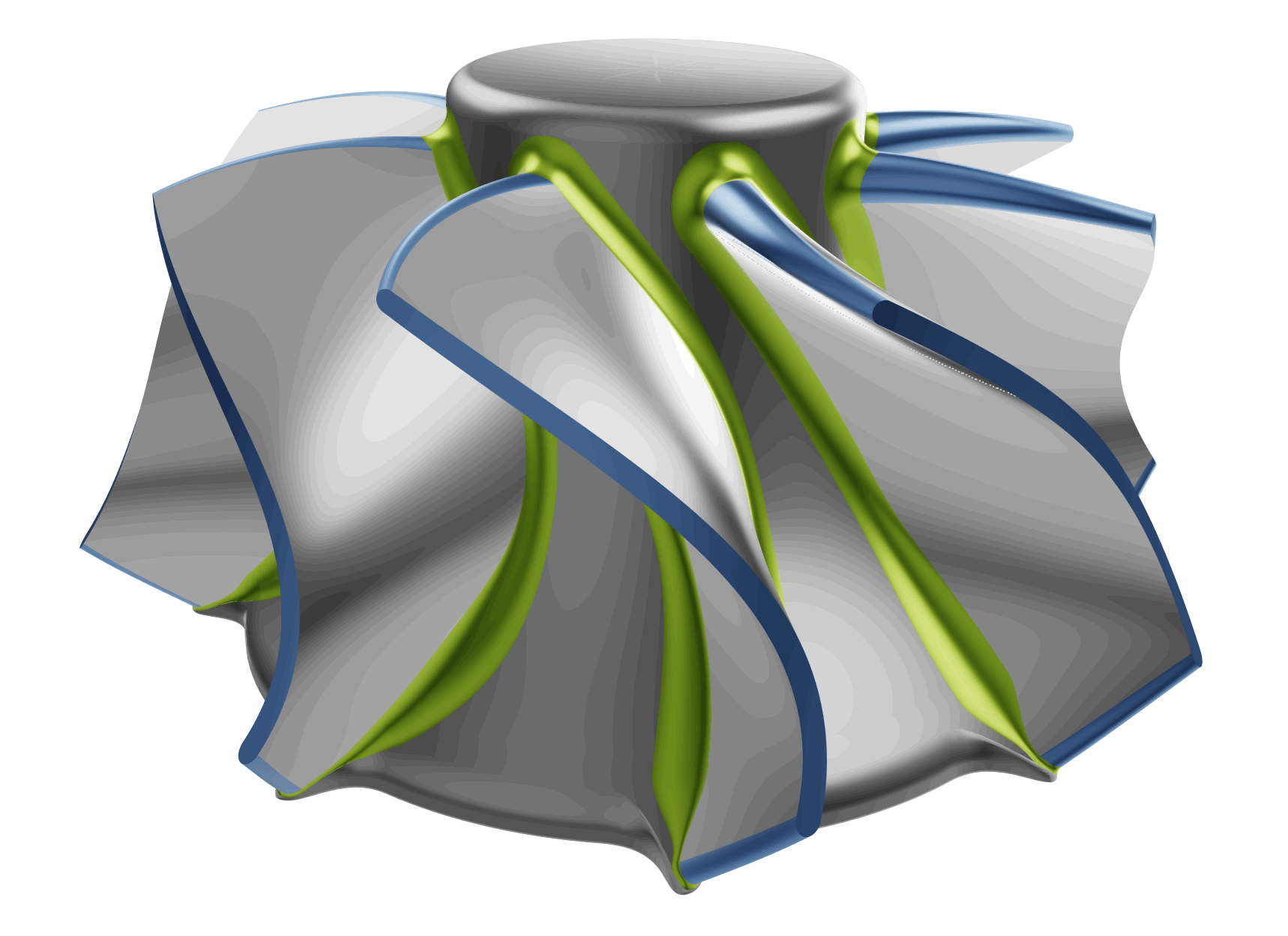

Turbine wheel model for automated shape optimizations incl. variable scallops

Turbine wheel model for automated shape optimizations incl. variable scallops

Such a geometry setup is either available as a CAESES® model with the option for you to still modify them (no “black box”), or they can be accessed through a custom web app so that no special software expertise is required by the user. The CAESES® geometries are 100% robust, and they can be readily meshed and analyzed by your tools of choice. Optionally, we can also provide the periodic mesh domain as a parametric model.

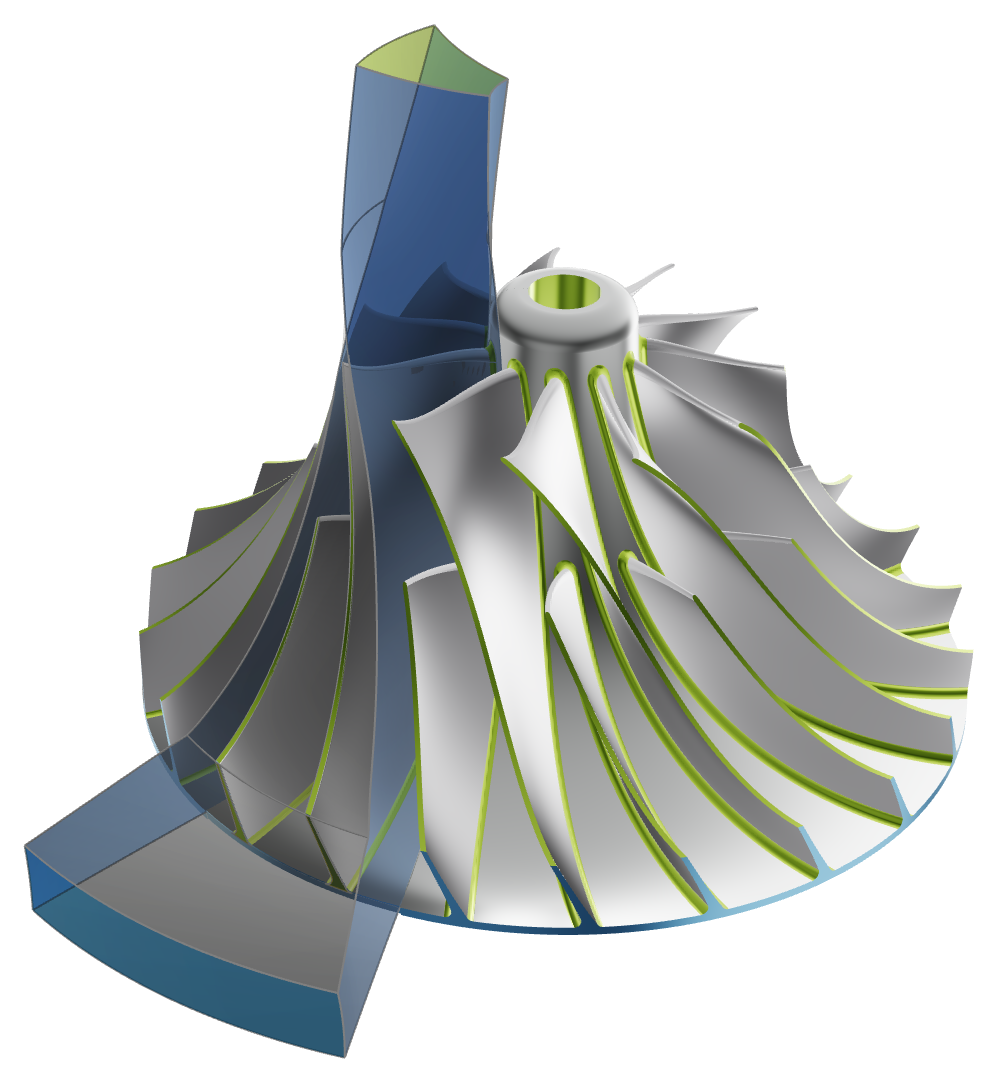

Periodic & parametric domain for immediate meshing

Periodic & parametric domain for immediate meshing

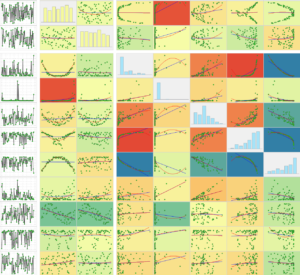

Optimization

Use your own optimization tools to control the geometry modifications of the CAESES® model in a CFD-driven process. Alternatively, we can provide you an embedded solution for automated studies and variant management, directly in CAESES®! Everything is available right away. Just ask us for more information.
